WEICHAI Water Cooled Diesel Generator Wholesale Supply

该产品后台详情无内容
WEICHAI Water Cooled Diesel Generator Wholesale Supply

WEICHAI Water Cooled Diesel Generator Wholesale Supply

Brand:
JET POWER
Factory Price:
Negotiate
Port:
FUZHOU, CHINA
Payment Terms:
L/C, Cash, Western Union, T/T
ODM & OEM:
Available
Certification
ISO9001, CE
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
  1. • Output:20kVA - 1400KVA
  2. • Powered by WECHAI
  3. • Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
  4. • Open type / Silent type
  5. • Optional: ATS system, AMF function, Parallel system.

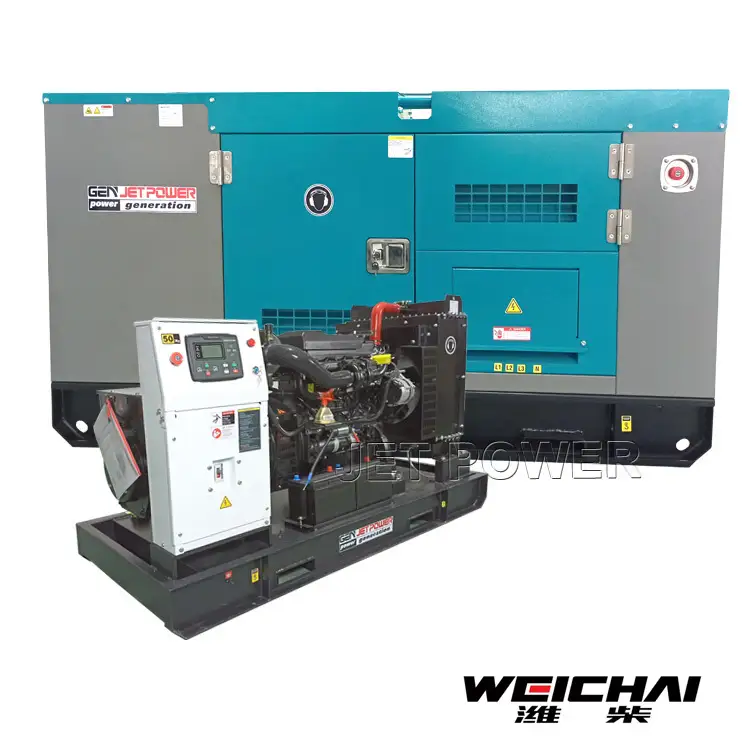

Silent diesel generator set, Powered by WEICHAI ENGINE

Soundproof diesel generator set

Safety – Stability – Economy -  Reliability Power

01. Our cooperate with famous diesel engine –Powered by Cummins, Perkins,  Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.
02. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.
03. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working
04. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power
05. Generator set use High-quality steel are thickness canopy --2MM to 10MM
06. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
07. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
08. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
09. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

_________________________________________________________________________________________________________________________

01

Controller System

DSE6020, HGM6120N, DSE7320 (AMF) Series Standard control panel, Optional Automatic transfer switch (ATS) and Automatic parallel operation system, Remote control system.

Automatic transfer switch (ATS) and Automatic parallel operation system

02

Accessories

Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

03

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.

04

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

Model 400V / 50Hz / 1500RPMWEICHAI Diesel EngineAlternator
Standby outputPrime OutputModelNo. of CylinderGovernorBore×StrokeDisplacementFuel consumption @100% Load(L/h)Brushless
KVAKWKVAKW(MM)(L)
WP-222217.62016WP2.3D25E2004LMechanical90×1002.54JET184D
WP-2827.5222520WP2.3D33E2004LMechanical102×1182.55JET184FS
WP-333326.43024WP2.3D33E2004LMechanical102×1182.56JET184G
WP-4141 3337.530WP2.3D40E2004LMechanical105×1252.57.5JET184H
WP-5050404536WP2.3D48E2004LMechanical105×1252.58.5JET224C
WP-5555445040WP4.1D66E2004LMechanical105×1304.510JET224D
WP-7069 5562.550WP4.1D66E2004LMechanical105×1304.512.5JET224E
WP-8383667560WP4.1D80E2004LMechanical105×1304.514.5JET224G
WP-100100809072WP4.1D100E2004LMechanical105×1304.516JET224G1
WP-1101108810080WP4.1D100E2004LMechanical105×1304.520JET274C
WP-125125100114 91WP6D132E2006LMechanical105×1306.7522.5JET274D
WP-138137.5110125100WP6D132E2006LMechanical105×1306.7525JET274D1
WP-165165132150120WP6D152E2006LMechanical105×1306.7530JET274F
WP-206206 165187.5150WP10D200E2006LMechanical126×1309.72643.6JET274H
WP-250250200225180WP10D238E2006LMechanical126×1309.72652.7JET274J
WP-275275220250200WP10D264E2006LMechanical126×1309.72659.3JET274K
WP-344344 275313250WP12D317E2006LMechanical126×15511.59668.7JET444E
WP-420420336380304WP13D385E2006LMechanical127×16512.5485JET444FS
WP-440440352400320WP13D385E2006LMechanical127×16512.5489JET444F
WP-5005004004503606M26D447E2006LElectric150×15015.993JET544C
WP-5505504405004006M26D484E2006LElectric150×15015.996.8JET544D
WP-6606605286004806M33D572E2006LElectric150×18519.6104JET544E
WP-688687.55506255006M33D605E2006LElectric150×18519.6121JET544FS
WP-82582566075060012M26D792E20012VElectric150×15031.8139JET634B
WP-88088070480064012M26D792E20012VElectric150×15031.8150JET634C
WP-1000100080091072812M26D902E20012VElectric150×15031.8164JET634D
WP-11001100880100080012M26D968E20012VElectric150×15031.8176JET634E
WP-125012501000115092012M33D1108E20012VElectric150×18539.2202JET634F
WP-1400140011201250100012M33D1210E20012VElectric150×18539.2220JET634G
