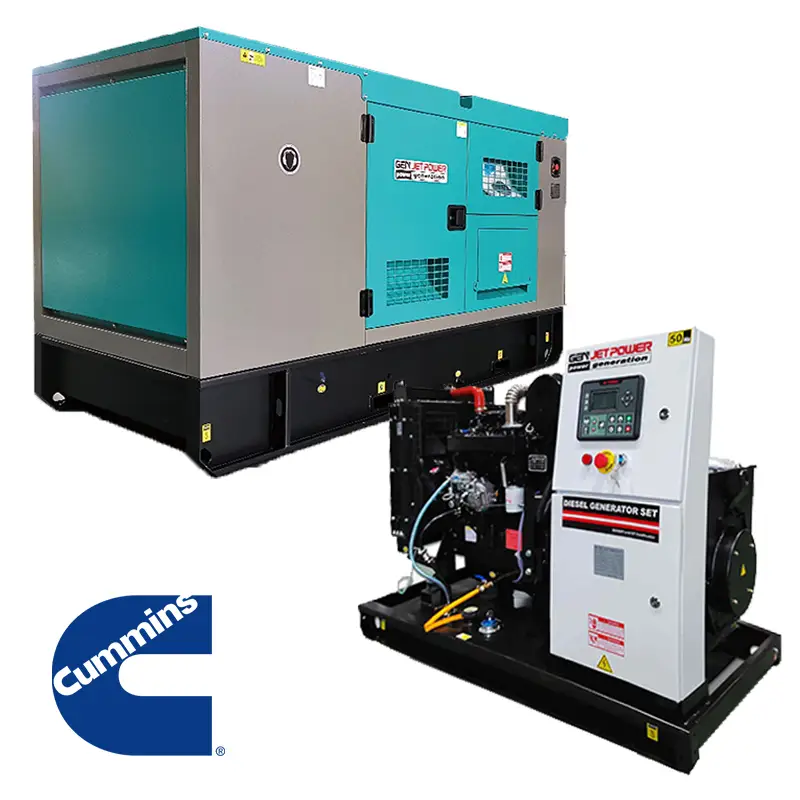

50Hz 11KVA to 440KVA UK Diesel Generator Set

11KVA to 440KVA Powered by UK Diesel engine

Engine Brand:

UK Engine

Power range:

11KVA to 440KVA

Frequency:

50Hz

Voltage Optional:

220/380V/3 Phase, 230/400V/3 Phase, Other voltage is optional

Alternator Optional:

Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte

Type Optional:

Open type, Silent type, Trailer type, Container type

Control Function Optional:

ATS system, AMF function, Parallel system, Remote control,Hight voltage system.

ODM & OEM:

Available

Certification:

ISO9001, CE, Saber , PVOC, COC, UL, CSA，EAC

Payment Terms:

T/T, L/C, Cash, Western Union

Emission level:

N/A

Inquiry

Write a Review

PRODUCT DESCRIPTION

Safety – Stability – Economy - Reliability Power

01. Our cooperate with famous diesel engine –Powered by Cummins, Perkins, Deutz , LovoL , Lister Petter, Doosan/HYUNDAI, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Yuchai, UK engine.

02. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.
03. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working
04. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control Brand, Deep sea, Smartgen , ComAp , Jet Power
05. Generator set use High-quality steel are thickness canopy --2MM to 10MM
06. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
07. Generator equipped with 12V / 24V DC battery with charger, battery connects wire.
08. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
09. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Open type, Silent type, Soundproof type, Trailer type, Container type.

_________________________________________________________________________________________________________________________

50Hz 11KVA to 440KVA UK Diesel Generator Set 2

DIESEL ENGINE

Powered by Cummins Engine, Perkins Engine, Deutz , LOVOL , Lister Petter , Doosan , Yanmar , Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.
• Brand new engine 4-Strokes,Water cooled, direct injection engine
• Rated Speed: 1500rpm / 1800rpm
• Start type: 12V or 24V DC Electrical Start
• Governing control: Mechanical or Electrical
• Radiator standard: 50°environment temperature
• Altitude above sea level: ≤1000 meters
• Ambient air temperature: ≤40°C

50Hz 11KVA to 440KVA UK Diesel Generator Set 3

A.C ALTERNATOR

Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.The windings have a 2/3 pitch in order to reduce the harmonic content of voltage.
• Generator Phase and connecting: 3 phase, 4wire.
• Rated frequency: 50Hz@1500rpm / 60Hz@1800rpm.
• Alternator excited type: Brushless, self excited or PMG optional
• Alternator Insulation: Class H， Protection: IP21 ~ IP23
• Voltage regulation: AVR automatic control 1%
• Altitude above sea level: ≤1000 meters
• Ambient air temperature: ≤40°
• Relative air humidity: ≤ 90%
Complies with the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Controller System

• DSE6020, HGM6120N, DSE7320 (AMF) Series Standard control panel, Optional Automatic transfer switch (ATS) and Automatic parallel operation system, Remote control system.

• Automatic transfer switch (ATS) and Automatic parallel operation system

Accessories

Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

PRODUCT SPECIFICATIONS

Model	400V / 50Hz / 1500RPM				UK Design Engine					Alternator
	Standby output		Prime Output		Model	Engine type		Displacement	Bore×Stroke	Brushless
	KVA	KW	KVA	KW	Model	No. of Cydlinder	Governor	(L)	(MM)	Brushless
UK-12Y	12	9.6	11	8.8	YD490-D17	L4	Mechanical	2.55	90×100	JET164B
UK-15Y	15	12	14	10.8	YD490-D17	L4	Mechanical	2.55	90×100	JET164C
UK-18Y	18	14	16	12.8	YD490-D17	L4	Mechanical	2.55	90×100	JET164D
UK-22Y	22	17.6	20	16	YD490-D22	L4	Mechanical	2.55	90×100	JET184D
UK-25Y	25	20	23	18	YD490-D22	L4	Mechanical	2.55	90×100	JET184E
UK-28Y	28	22	25	20	YD493-D25	L4	Mechanical	2.77	93×102	JET184FS
UK-33Y	33	26	30	24	YD493-D28	L4	Mechanical	2.77	93×102	JET184G
UK-41R	41	33	38	30	YD4105-D38	L4	Mechanical	4.2	105×120	JET184H
UK-55R	55	44	50	40	YD4105-D60	L4	Mechanical	4.2	105×120	JET224D
UK-70R	69	55	63	50	YD4105-D60	L4	Mechanical	4.2	105×120	JET224E
UK-83R	83	66	75	60	YD4105-D75	L4	Mechanical	4.2	105×120	JET224F
UK-96R	96	77	88	70	YD4110-D88	L4	Mechanical	5.3	110×140	JET224G
UK-110R	110	88	100	80	YD4110-D110	L4	Mechanical	5.3	110×140	JET274C
UK-110R	110	88	100	80	6RT05-D121	L6	Mechanical	6.75	105×130	JET274C
UK-125R	125	100	113	90	6RT05-D121	L6	Mechanical	6.75	105×130	JET274D
UK-138R	138	110	125	100	6RT05-D132	L6	Mechanical	7.01	105×135	JET274DM
UK-165R	165	132	150	120	6RT08-D150	L6	Mechanical	7.42	108×135	JET274F
UK-206R	206	165	188	150	6RT80-176DE	L6	Mechanical	7.82	113×130	JET274G
UK-250S	250	200	225	180	6DTAA8.9-G24	L6	Electric	9.73	126X130	JET274J
UK-275S	275	220	250	200	6DTAA8.9-G23	L6	Electric	9.73	126X130	JET274K
UK-330S	330	264	300	240	6ETAA11.8-G22	L6	Electric	11.59	126X155	JET444E
UK-385S	385	308	350	280	6ETAA11.8-G21	L6	Electric	11.59	126X155	JET444EM
UK-413S	413	330	375	300	6ETAA12.8-G22	L6	Electric	12.6	126X155	JET444FS
UK-440S	440	352	400	320	6ETAA12.8-G21	L6	Electric	12.6	126X155	JET444F

50Hz 11KVA to 440KVA UK Diesel Generator Set 4
