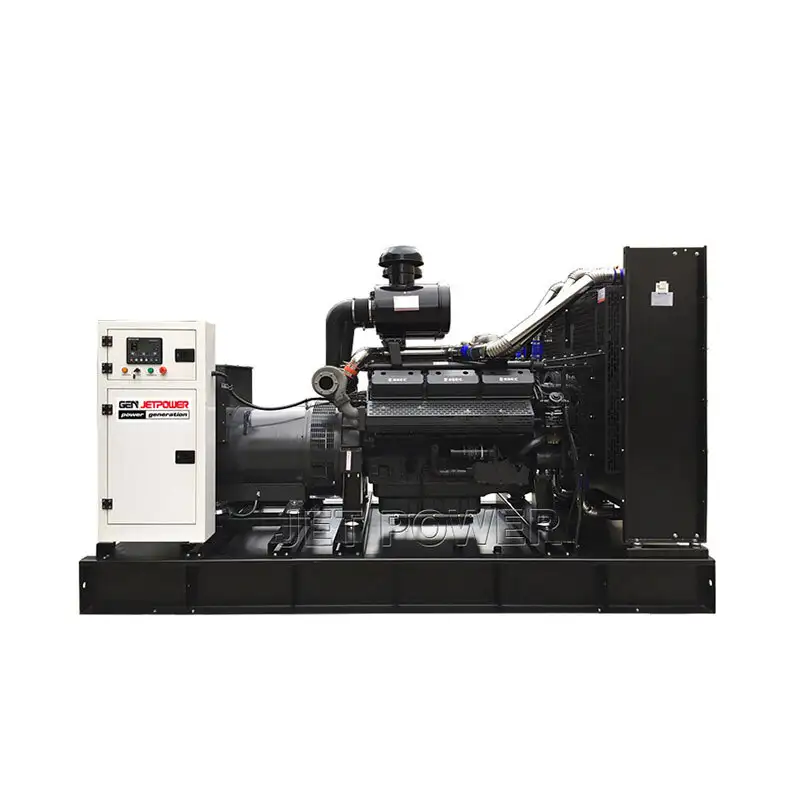

Wholesale SDEC Electrical Water Cooled Diesel Generator Set 1

Wholesale SDEC Electrical Water Cooled Diesel Generator Set 2

Wholesale SDEC Electrical Water Cooled Diesel Generator Set 3

Wholesale SDEC Electrical Water Cooled Diesel Generator Set 4

Wholesale SDEC Electrical Water Cooled Diesel Generator Set

Brand:

JET POWER

Factory Price:

Negotiate

Port:

FUZHOU, CHINA

Payment Terms:

L/C, Cash, Western Union, T/T

ODM & OEM:

Available

Certification:

ISO9001, CE

Inquiry

Write a Review

• Output:63kVA - 1000KVA
• Powered by SDEC
• Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
• Open type / Silent type
• Optional: ATS system, AMF function, Parallel system.

PRODUCT DESCRIPTION

Silent diesel generator set, Powered by SDEC ENGINE

Soundproof diesel generator set

Safety – Stability – Economy - Reliability Power

01. Our cooperate with famous diesel engine –Powered by Cummins, Perkins, Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.
02. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.
03. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working
04. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power
05. Generator set use High-quality steel are thickness canopy --2MM to 10MM
06. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
07. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
08. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
09. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

_________________________________________________________________________________________________________________________

Wholesale SDEC Electrical Water Cooled Diesel Generator Set 5

DIESEL ENGINE

Powered by Cummins Engine, Perkins Engine, Deutz , LOVOL , Lister Petter , Doosan , Yanmar , Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.
• Brand new engine 4-Strokes,Water cooled, direct injection engine
• Rated Speed: 1500rpm / 1800rpm
• Start type: 12V or 24V DC Electrical Start
• Governing control: Mechanical or Electrical
• Radiator standard: 50°environment temperature
• Altitude above sea level: ≤1000 meters
• Ambient air temperature: ≤40°C

Wholesale SDEC Electrical Water Cooled Diesel Generator Set 6

A.C ALTERNATOR

Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.The windings have a 2/3 pitch in order to reduce the harmonic content of voltage.
• Generator Phase and connecting: 3 phase, 4wire.
• Rated frequency: 50Hz@1500rpm / 60Hz@1800rpm.
• Alternator excited type: Brushless, self excited or PMG optional
• Alternator Insulation: Class H， Protection: IP21 ~ IP23
• Voltage regulation: AVR automatic control 1%
• Altitude above sea level: ≤1000 meters
• Ambient air temperature: ≤40°
• Relative air humidity: ≤ 90%
Complies with the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

Controller System

• DSE6020, HGM6120N, DSE7320 (AMF) Series Standard control panel, Optional Automatic transfer switch (ATS) and Automatic parallel operation system, Remote control system.

• Automatic transfer switch (ATS) and Automatic parallel operation system

Accessories

Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

PRODUCT SPECIFICATIONS

Model	400V / 50Hz / 1500RPM				SDEC Diesel Engine					Alternator
	Standby output		Prime Output		Model	Engine type		Displacement	Bore×Stroke	Brushless
	KVA	KW	KVA	KW	Model	No. of Cylinder	Governor	(L)	(MM)	Brushless
SD-69	69	55	63	50	SC4H95D2	L4	Electric	4.3	105x124	JET224E
SD-88	88	70	80	64	SC4H115D2	L4	Electric	4.3	105x124	JET224G
SD-110	110	88	100	80	SC4H160D2	L4	Electric	4.3	105x124	JET274C
SD-138	138	110	125	100	SC4H180D2	L4	Electric	4.3	105x124	JET274D1
SD-176	176	141	160	128	SC7H230D2	L6	Electric	6.5	105x124	JET274F
SD-200	200	160	180	144	SC7H250D2	L6	Electric	6.5	105x124	JET274G
SD-220	220	176	200	160	SC8D280D2	L6	Electric	8.27	114x135	JET274H
SD-250	250	200	225	180	SC9D310D2	L6	Electric	8.82	114x144	JET274J
SD-275	275	220	250	200	SC9D340D2	L6	Electric	8.82	114x144	JET274K
SD-330	330	264	300	240	SC12E460D2	L6	Electric	11.8	128x153	JET444D
SD-360	358	286	325	260	SC12E460D2	L6	Electric	11.8	128x153	JET444E
SD-385	385	308	350	280	SC15G500D2	L6	Electric	14.16	135x165	JET444FS1
SD-413	413	330	375	300	SC15G500D2	L6	Electric	14.16	135x165	JET444FS
SD-500	500	400	450	360	SC25G610D2	12V	Electric	25.8	135x150	JET544C
SD-550	550	440	500	400	SC25G690D2	12V	Electric	25.8	135x150	JET544D
SD-625	625	500	563	450	SC27G755D2	12V	Electric	26.6	135x155	JET544ES
SD-688	688	550	625	500	SC27G830D2	12V	Electric	26.6	135x155	JET544FS
SD-760	756	608	688	550	SC27G900D2	12V	Electric	26.6	135x155	JET544F
SD-825	825	660	750	600	SC33W990D2	L6	Electric	32.8	180x215	JET634B
SD-908	907.5	726	825	660	6KTAA25-G321	L6	Electric	25.18	170×185	JET634C
SD-1000	1000	800	900	720	SC33W1150D2	L6	Electric	32.8	180x215	JET634D

Wholesale SDEC Electrical Water Cooled Diesel Generator Set 7
