Brand: JET POWER
Power: 5.5HP - 16HP
output shaft with Key
OHV Single cylinder engine

PRODUCT DESCRIPTION

■Low noise level and vibration.

■Large stable power output.

■Easy-pull, quick starting.

■Low fuel consumption.

■Rugged and reliable

■ CE,EC-II,EPA,CARB,EMC approved

_________________________________________________________________________________________________________________________

GASOLINE ENGINE

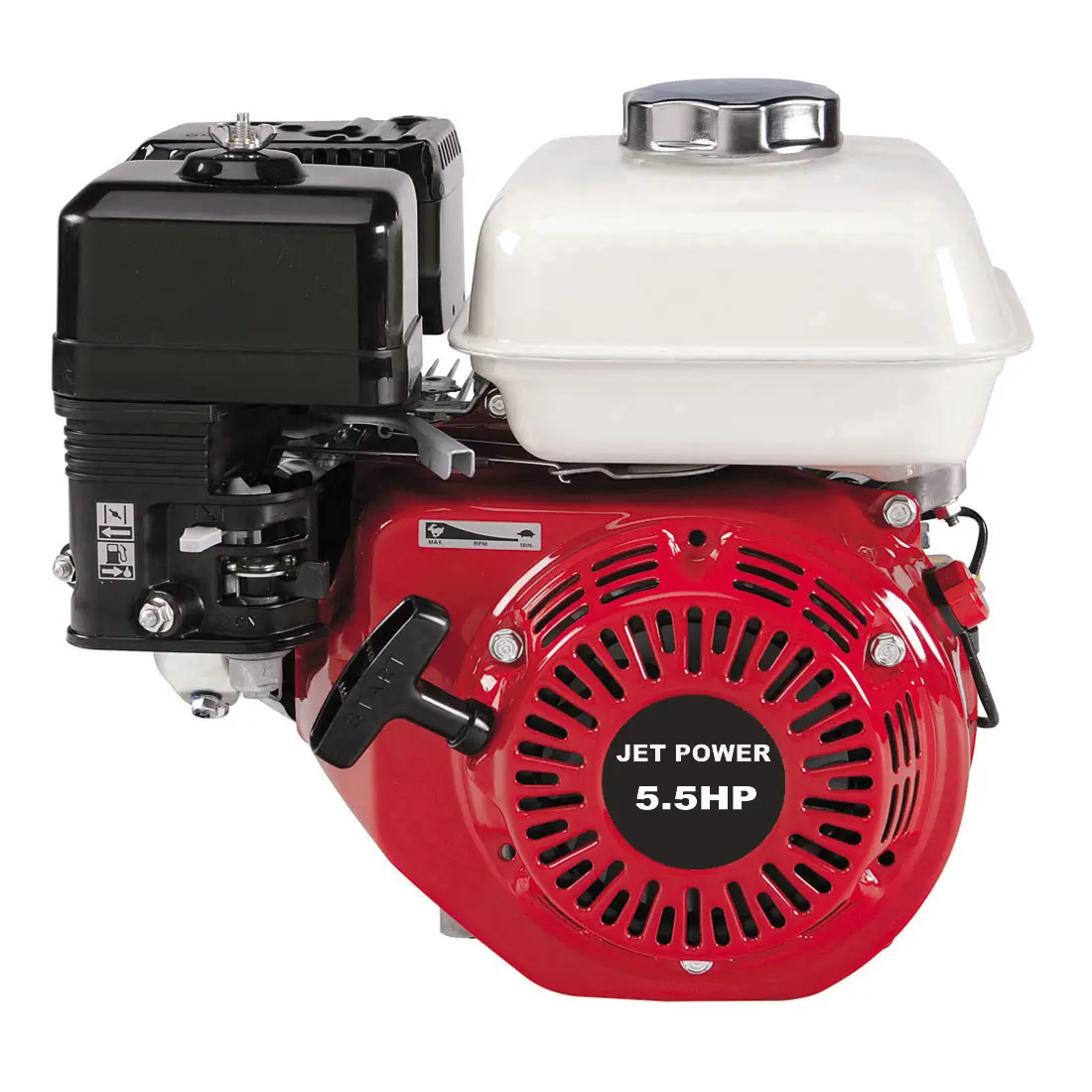

Jet Power GE Series Air cooled Gasoline Engine
• Brand new engine 4-Strokes, Air cooled
• Rated Speed: 3000rpm / 3600rpm
• Start type: Manual Start or Electrical Start
• Altitude above sea level: ≤1000 meters
• Ambient air temperature: ≤25°C
• Automatic mechanical de-compression system
• Improved camshaft and muffler reduce overall engine noise by up to 5 dB
• Reduced mechanical noise due to piston design
• Forged steel crankshaft and rigid crankcase
• Helical cut gears Sophisticated air intake system

Engine Part

• Reinforced heavy duty aluminium alloy body
• Top brand pistons and piston rings
• Customized connecting rod
• Ductile cast iron Crankshaft
• Japanese technical carburetor
• Air-cooled 4 stroke OHV single cylinder
• Altitude above sea level: ≤1000 meters
• Ambient air temperature: ≤40°

Start System

• Gasoline engine Standard control panel

• Recoil manual start.

• Electric start

Accessories

Standard accessories: Standard tool kit, Operation manual

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

PRODUCT SPECIFICATIONS

Model	GE160 (168F)	GE200 (168FA)	GE210 (170F)	GE390 (188F)	GE420 (190F)	GE460 (192F)
Engine Type	Air-cooled 4 stroke OHV single cylinder
Max. Power Output（HP/rpm）	5.5 / 3600	6.5 / 3600	7.0 / 3600	13 / 3600	15 / 3600	16 / 3600
Bore X Stroke（mm）	68 x 45	68 x 54	70 x 55	88 x 64	90 x 66	92 x 66
Displacement（cc）	163	196	212	389	420	439
Compression Ratio	8.5 : 1	8.5:1	8.5:1	8:1	8.5:1	8.0:1
Max. Torque（N.m/rpm）	10.3N.m/2500rpm	12.4N.m/2500rpm	12.5N.m/2500rpm	25.1N.m/2500rpm	26.5N.m/2500rpm	28N.m/2500rpm
Mini speed at zero load (r/min)	1400±150r/min	1400±150r/min	1400±150r/min	1400±150r/min	1400±150r/min	1400±150r/min
Ignition System	Non-contact transistorized ignition （T.C.I）
Starting System	Recoil / Electric	Recoil / Electric	Recoil / Electric	Recoil / Electric	Recoil / Electric	Recoil / Electric
Air Cleaner	Semi-dry, oil bath, dual, double silent and cyclone type
Lubricating system	Splashed	Splashed	Splashed	Splashed	Splashed	Splashed
Rotation direction(face to the output axle)	Anticlockwise	Anticlockwise	Anticlockwise	Anticlockwise	Splashed	Splashed
Lube oil type	CD grade or SAE 10W-30, 15W-40
Fuel Tank（L）	3.6	3.6	3.6	6.5	6.5	6.5
Oil Capacity（L）	0.6	0.6	0.6	1.1	1.1	1.2
Fuel Consumption（g/kw-hour）	≤395	≤395	≤395	≤374	≤374	≤374
Dimension（L x W x H）mm	380 x 330 x 375	380 x 330 x 375	380 x 330 x 375	480 x 420 x 505	480 x 420 x 505	480 x 420 x 505
G.W（Kg）	16	16.5	17	33	34	36
20FT/40HQ（pcs）	620	620	620	252/670	252/670	252/670
